BTS

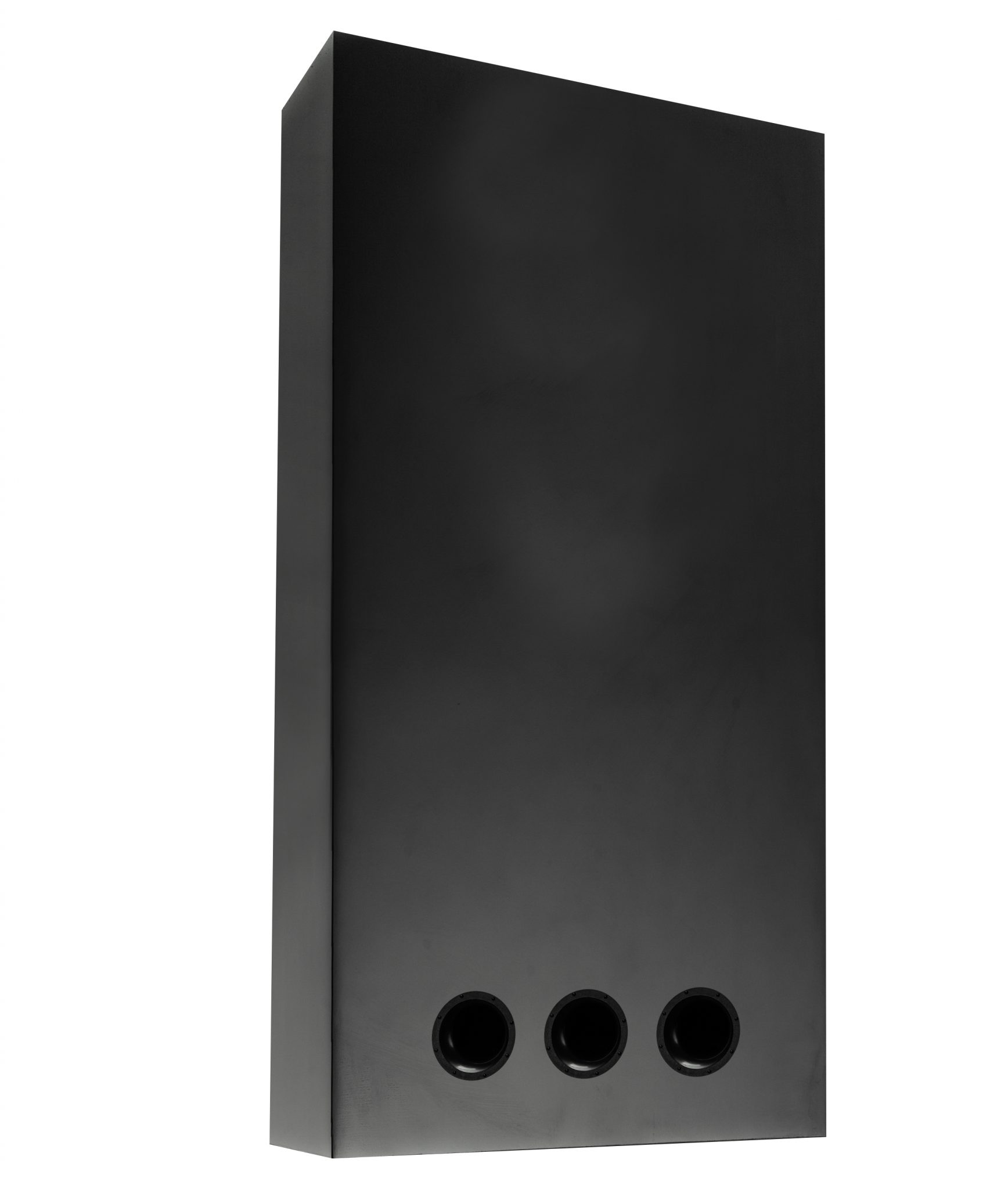

The BTS (“Between the Sheets”) is our ultra-thin dual alignment bandpass subwoofer designed to mount within 2 x 4 construction.  At only 3.5” deep, the enclosure is intended to be fully sheetrocked over with a small exposed port finished in our non-resonant magnetic Corian™ wall plate with inset micro-perforated grille. The proprietary design is able to energize rooms up to 500 sq. ft., combining the performance of traditionally fully exposed speakers with an “aesthetic minimalism” that clients and designers demand.

The graph below, taken at 1 m, shows linear bass response to -3 dB @ 30 Hz providing nearly 95 dB of output with only 5 watts of input.

BTS Specs
SPECS DESCRIPTION SPECS
SYSTEM DESIGN Subwoofer, Dual Alignment, Bandpass
DRIVER (2) 6″ proprietary rare earth neodymium drivers
Impedance 8 ohms
FREQUENCY RESPONSE – 3 dB @ 30 Hz – 120 Hz
SENSITIVITY 90 dB
DIMENSIONS 3.5″ d x 14.3″ w x 40″ h
WEIGHT 28 lbs
