CI-IWSUR

surround 5 depth icon 4 depth icon

The CI-IWSUR6.1 is a dedicated side and rear channel speaker for high-end 5.1 and 7.1 theater applications. A proprietary cast wool/carbon Quiet Cone™ 6” woofer, with (3) 1” neodym silk dome tweeters, provides wide coverage and exceptional rear/side field characteristics. By grouping (3) tweeters in a controlled cluster, radiated power is uniform across the vertical and horizontal axis, producing an extremely large sound field. Standard 45 degree dispersion.

A minimum phase optimized hybrid crossover completes the design by maintaining constant impedance.

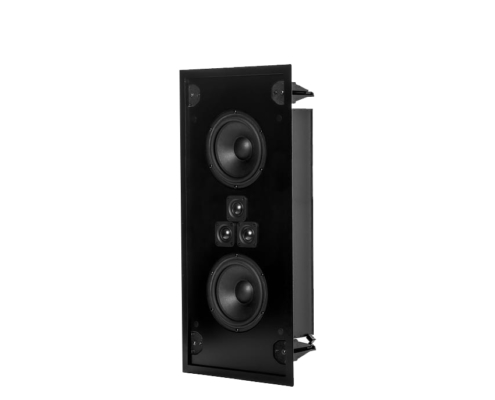

The CI-IWSUR5.2, constructed of dual 5.5″ cast wool/carbon Quiet Cone™ woofers and (3) 1” neodym silk dome tweeters, exhibits wide coverage and exceptional rear/side field dedicated surround sound performance. The dual 5.5“ woofers, coupled with the performance of the (3) tweeter cluster, produce exceptional off-axis far field power and uniform radiated power dispersion across the vertical and horizontal axis. This allows the CI-IWSUR5.2 to achieve sound pressure levels over 108 dB!

A rugged 3/4” wide aluminum mounting frame is fastened to a massive ¾” thick MDF baffle with acoustic back box enclosure. The proprietary inner support trestle bar assembly is comprised of ¾” thick 13 ply birch and secures to the wall cavity via ¼” steel bolts. The totality of the assembly provides for a rigid and resonance free mounting system. Standard 45 degree dispersion.

A minimum phase optimized hybrid crossover integrates all five drive units providing maximum power bandwidth over the entire audio spectrum.

CI-IWSUR6.1
SPECS DESCRIPTION SPECS
System Design TWO-WAY 6″ dedicated surround in-wall system
Enclosure Sealed
Woofer 6″ Carbon Wool, Long Throw 1.5″ vc
Tweeter (3) 1″ textile dome
Recommended Amp Power 40-400 W max
Frequency Response 57 Hz – 18 kHz
Anechoic Frequency Response 57 Hz – 16 Khz  +- 3 db
Impedance 4 ohms
Sensitivity (db 1 watt/1 meter) 89
Hole Cut Out 11″ x 18″ x 5″d
Overall Size 12″ x 19″
Standard Finish Satin Black
CI-IWSUR5.2
SPECS DESCRIPTION SPECS
System Design TWO-WAY Dual 5.5″ dedicated surround in-wall system
Enclosure Sealed
Woofer (2) 5.5″ Carbon Wool, Long Throw 1.5″ vc
Tweeter (3) 1″ textile dome
Recommended Amp Power 40-400 W max
Frequency Response 59 Hz – 18 kHz
Anechoic Frequency Response 59 Hz – 16 khz +- 3 db
Impedance 4 ohms
Sensitivity (db 1 watt/1 meter) 90
Hole Cut Out 24″ x 8.5″ x 4″d
Overall Size 25″ x 9.5″
Standard Finish Satin Black
