CI-UTF10 / UTF12 / UTF 12LE

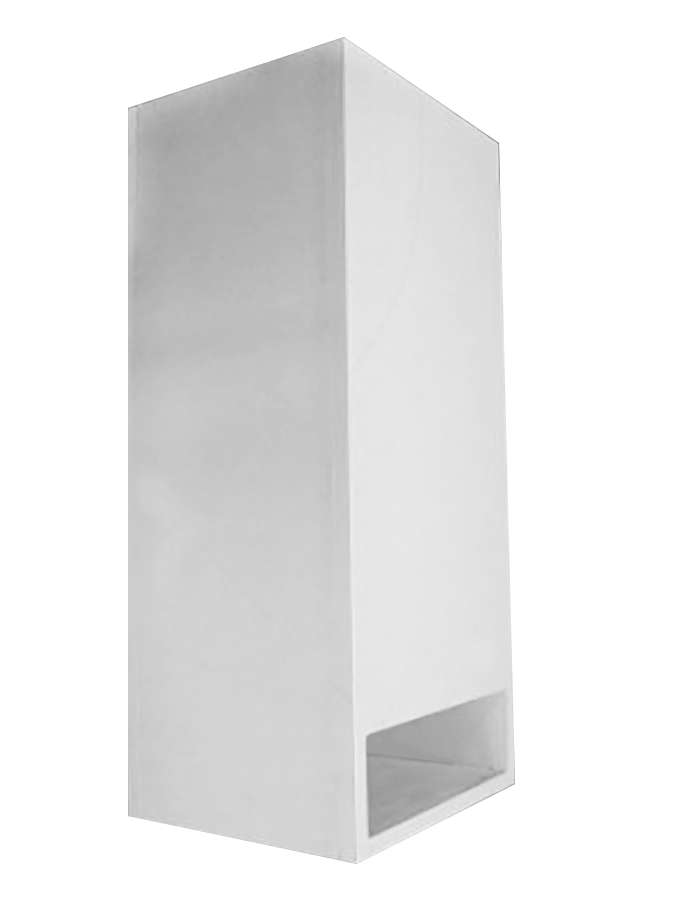

The UTF 10, UTF 12 and UTF 12LE “Under-The-Floor” subwoofers feature a proprietary extended line multi-duct system capable of generating high output, linear bass response with extremely low distortion. The bottom panel is removable allowing access to the driver baffle for fast, easy service.  The heavily braced cabinet panels prevent flexing and bass loss.  In addition, the bass output vent is designed to accommodate most heating and air conditioning floor registers making it ideal for upscale installations where hidden high performance is essential.
CI-UTF 10 Specs
SPECS DESCRIPTION SPECS
SYSTEM DESIGN Subwoofer, Vented – 8 ohms
DRIVER 10″ Kevlar 30 Oz Magnet, 1.7″ VC
RECOMMENDED POWER 250 W RMS
FREQUENCY RESPONSE 37 Hz – 100 Hz
MAXIMUM OUTPUT 112 dB
DIMENSIONS 30″ x 13″ w x 11″ d
WEIGHT 35 lbs.
CI-UTF 12 Specs
SPECS DESCRIPTION SPECS
SYSTEM DESIGN Subwoofer, Vented – 8 ohms
DRIVER 12″ Kevlar, 40 Oz Magnet, 2″ VC
RECOMMENDED POWER 300 W RMS
FREQUENCY RESPONSE 34 Hz – 100 Hz
MAXIMUM OUTPUT 117 dB
DIMENSIONS 30″ x 14″ w x 13″ d
WEIGHT 40 lbs.
CI-UTF 12LE Specs
SPECS DESCRIPTION SPECS
SYSTEM DESIGN Subwoofer, Vented – 4 ohms
DRIVER 12″ Kevlar, 70 Oz Magnet, 3″ VC
RECOMMENDED POWER  500 W RMS
FREQUENCY RESPONSE 29 Hz – 100 Hz
MAXIMUM OUTPUT 121 dB
DIMENSIONS 30″ x 14″ w x 13″ d
WEIGHT 48 lbs.
